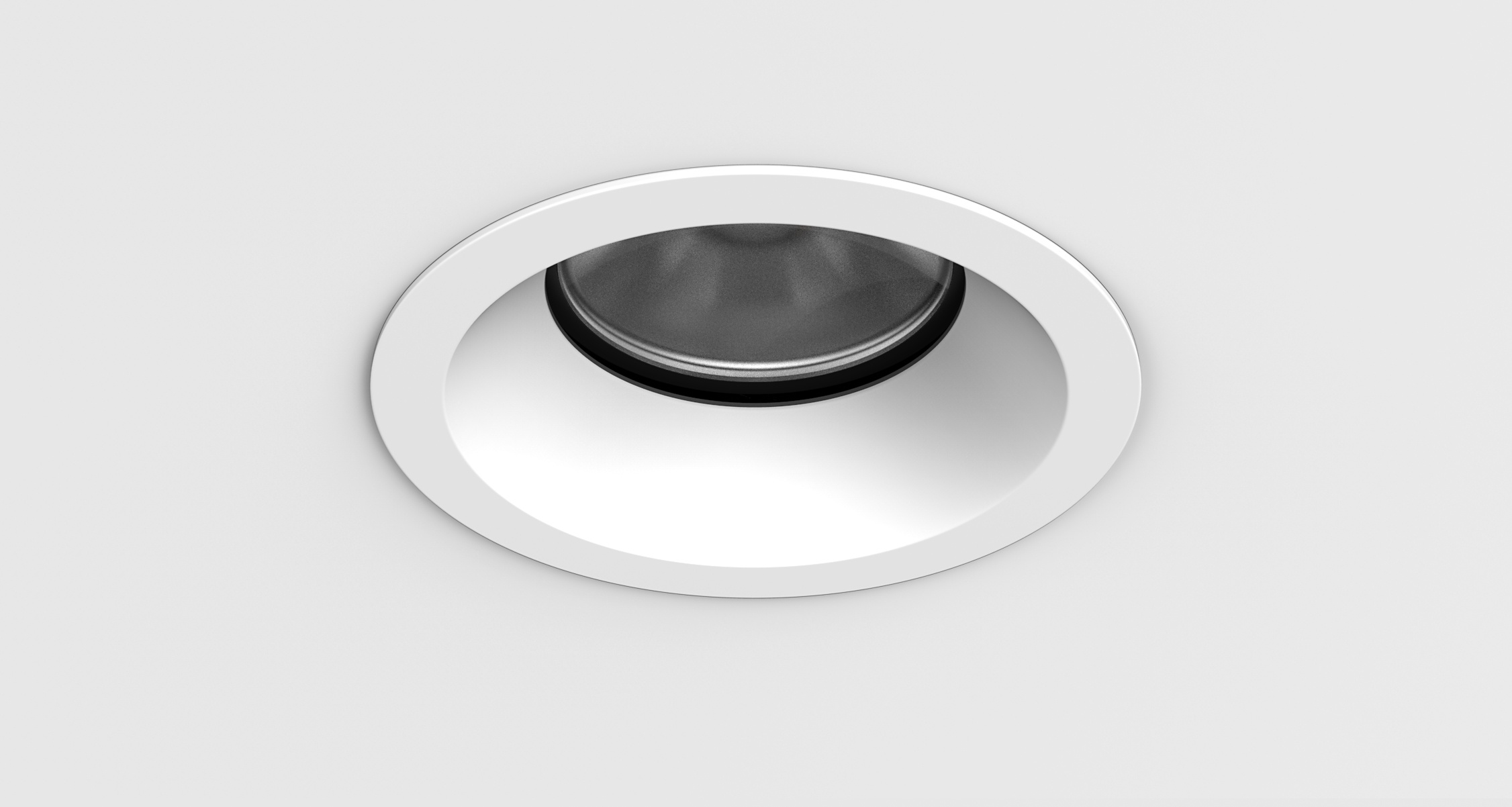

D3 Round Shallow Bevel Downlight
D3 Round Shallow Bevel Downlight
Ketra’s D3 fixed downlight features low-profile housing, wireless communication, and field replaceable optics and electronics. With a wealth of trim and optic accessories, the D3 is ideal for a large variety of applications. It uses a fully-tunable spectrum capable of delivering high quality white, saturated, and pastel light.
  • Fully-tunable spectrum offers a wide range of whites from 1,400K-10,000K, pastels, and saturated colors
  • High-quality color rendering: 90+ CRI from a single-point source
  • Closed-loop color point maintenance keeps color within 1 MacAdam ellipse across lifetime
  • Wireless color-point control and dimming to 0.1%

Dimensions

18.38"L

10"W

3.5"H

Lumen Outputs

700

900

1100

Trim Colors

White / Black

Beam Angles

Low Glare & High Output Lenses

15° / 25° / 40° / 60°

Wall Wash

Wattage

9W

13W

18W

Control

KetraNet Mesh Wireless

Resources

D3 Fixed Round Specification Sheet
D3 Installation Guide
D3 CAD Drawings
High Output and Low Glare IES File
D3 Brochure
D3 - How to Install Trims
D3 - How to Install Trims
D3 - Understanding Error Code Indicators
D3 - Understanding Error Code Indicators
D3 - How to Wire Mains Power
D3 - How to Wire Mains Power
D3 - How to Change the Power Supply
D3 - How to Change the Power Supply
D3 - How to Adjust Focus
D3 - How to Adjust Focus
D3 - How to Change Optics
D3 - How to Change Optics
D3 - Product Overview
D3 - Product Overview
